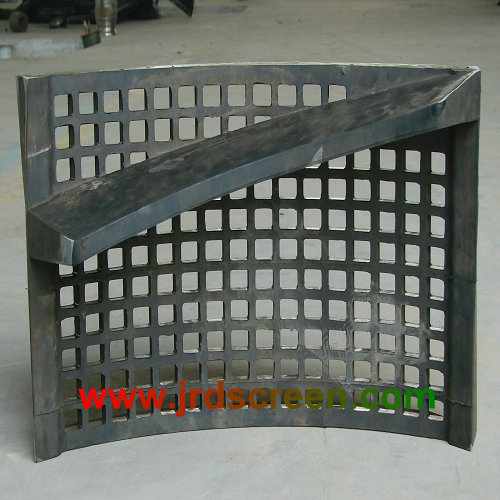

Rubber Skeleton Screen Is Made Of Steel Welded Skeleton And Rubber Outside, Which Has High Tensile Strength And Outstanding Wear Resistance. The Steel Skeleton Are Welded Into Square Or Rectangular Meshes. It Has Smooth Surface And Self-Cleaning Performance, So That It Can Avoid Pegging Or Blinding.
The Rubber Colors Always is Black, Of Course We also can make it into other color And Can Fit Different Vibrating Screens.
Rubber Skeleton Screen Is Flexible And Soft. It Has Steel Hooks Which Can Be Metal Or Rubber. The Steel Hooks Can Help The Screen To Be Fastened To The Vibrating Screens Easily.
Specifications
Material: Steel Wire Skeleton Inside And Rubber Outside.
Steel Thickness : 2.5mm - 5mm.
Hole Type: Square Or Rectangular.
Hole Size: 2mm - 25mm.
Panel Size:
Width: Max. 1.6m.
Length: Max. 2.85m.
Hook Type: Metal Or Rubber.
Features
No Pegging Or Blinding.
Wear Resistance.
High Tensile Strength.
High Screening Or Separating Efficiency.
Lightweight And Easy To Install And Remove.
Low Noise In The Operation.
Hook Connection For Easy Fastening.
Applications
Rubber Skeleton Screen Is Ideal For Various Materials No Matter Wet Or Dry Materials.
The Different Sizes Of Skeleton Screen Can Fit Various Vibrating Screens.
Skeleton Screen Can Be Used Combined With Woven Vibrating Screen Mesh And Rubber Screen For Different Requirements.
