Rubber Wire Screen Cloth Is a Kind Of Sieve Cloth Products Made Of Wear-Resistant Rubber. According To Different Structures, It Can Be Divided Into Pure Rubber Wire Screen Cloth And Steel Frame Rubber Wire Screen Cloth.

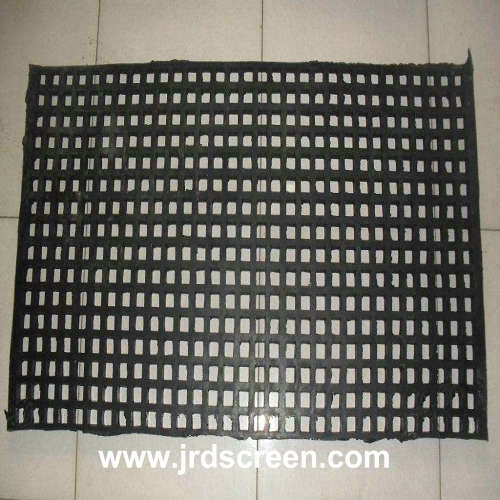

Pure Rubber Wire Screen Is Made Of Natural Pure Rubber By Pressing Into Silk Screen.

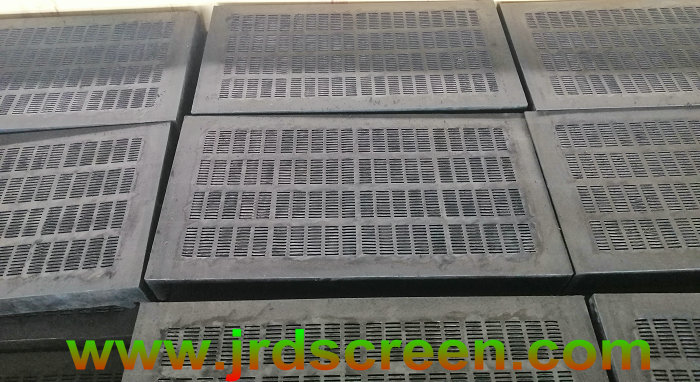

The Steel Frame Rubber Wire Screen Is Welded By High-Performance Carbon Steel Wire To Become The Base Steel Frame, And The Surface Is Attached With Wear-Resistant Rubber. The Utility Model Has The Advantages Of Large Bearing Capacity And High Wear Resistance Coefficient.
Specific Production Process:
1. Take Carbon Steel Wire As The Basic Raw Material, And Make Corresponding Wire Diameter According To The Needs Of The Owner. Generally From 0.1 Mm To 5 Mm. It Can Not Only Increase The Overall Bearing Pressure Of The Final Product, But Also Increase The Wear Resistance During Use; Reduce The Overall Weight And Improve The Installation Efficiency.
2. According To The Needs Of The Actual Working Environment, The Steel Wire Can Be Made Into A Welding Cloth Or a Preparation Cloth For The Rubber Lining Vulcanization As The Skeleton Preparation.
3. Clean The Prepared Metal Framework, Remove Rust, Dust And Clean The Surface.
4. Put The Prepared Metal Skeleton Wire Cloth Into The Prepared Rubber Mold, And Put The High Wear-Resistant Pre Vulcanized Rubber. After The High Temperature And High Pressure Of The Flat Vulcanizer, The Rubber Wire Cloth With High Quality And Perfect Can Be Presented.
5. Trim The Rubber Edge Of The Corner To Make The Overall Cloth Smooth And Regular, Which Is Convenient For Installation And Use.
Main Features:
1. High Strength Bearing Capacity
Carbon Steel Welded Skeleton Improves The Strong Manufacturing Ability, Fundamentally Improves The Compression Resistance Of Rubber Wire Cloth, So That It Is Not Easily Damaged In The Use Process.
2. High Wear Resistance
Rubber Is Wrapped On The Surface Of Steel Frame, Mainly In Contact With The Friction Of Materials. The Main Wear Resistance Of Rubber Wire Cloth Depends On The Performance Of Rubber, Not The Friction Coefficient Of Steel Frame.
3. Excellent Elasticity.
Carbon Steel Wire Cloth Itself Has The Tension Of Latitude And Longitude, So As To Ensure Good Overall Elasticity In The Use Process; Wear-Resistant Rubber Itself Belongs To Elastomer Material. Under The Action Of Sum Factors, The Rubber Wire Cloth Shows Excellent Elastic Properties.
4. Smooth Surface
The Steel Structure Of The Die Is Machined Strictly To Ensure That The Size Of The Rubber Wire Cloth Strictly Meets The Design Requirements; The Vulcanization Process Of High-Temperature And High-Pressure Rubber And The Delayed Vulcanization Time Of The Medium Temperature Holding Chamber Greatly Reduce The Size Error Caused By The Cold And Hot Shrinkage Of The Rubber. Strictly Follow The Production And Processing Technology Of The Factory To Make The Rubber Surface Flat.
5. The Number Of Entries Is Average And The Error Is Small,
The Production Process Is Mature And Complete. After Several Years Of Experience, The Cloth Number Of Steel Wire Cloth Is Uniform, And The Cloth Number Of
Rubber Screen Cloth Is Reasonable, Which Ensures That The Error Of Cloth Number After Rubber Vulcanization Molding Is Very Low, Even Can Be Ignored.
6. The Product Structure Is Firm.
The Steel Frame Adopts Advanced Automatic Mechanical Integral Argon Arc Welding To Ensure That The Welding Points Are Dense, No Omission, Reliable And Durable, Which Can Ensure That The Rubber Integral Cloth Is More Solid.
