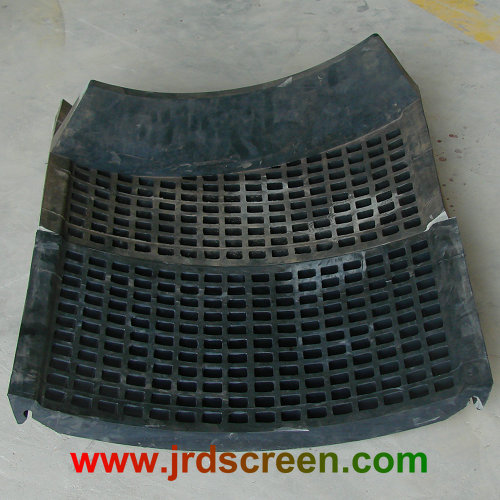

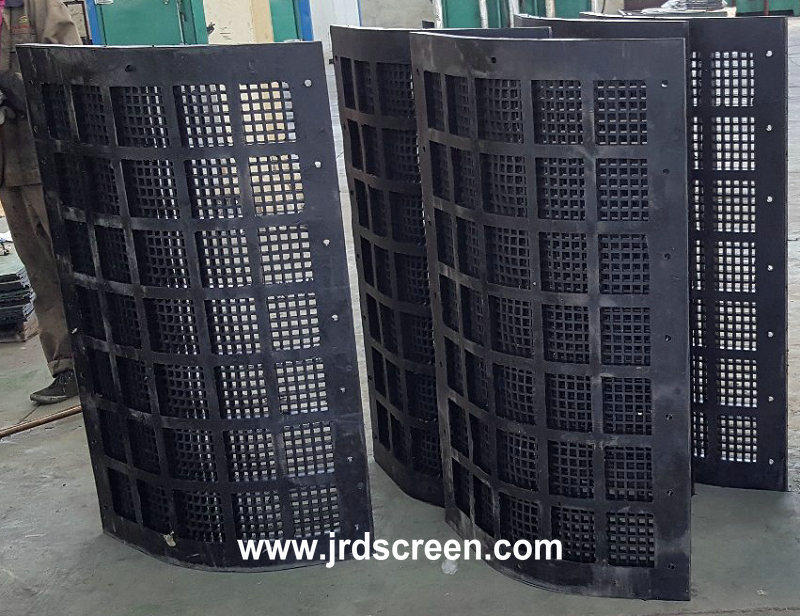

Rubber Mosaic Screen Is A Type Of Screens Made Of Steel Frame And Rubber Surface. This Structure Ensure The High Tensile Strength And Much Better Wear Resistance Than The Woven Vibrating Screen Panels And Perforated Vibrating Screen Panels.
Why Called Mosaic Screen ? Because Of The Narrow Mosaic Openings. The Narrow Mosaic Opening Is As Fine As 0.1mm, Which Makes The Screen Have High Efficiency And Accurate Dewatering Performance.
Mosaic Sieve Screen Is Widely Used To Assist In Separate Of Materials. Additional, It Can Also Provide a Ramp Which Helps To Maximize Screen Washing Capabilities.
Specifications
Material: Steel Frame And Rubber Surface.
Thickness: 30mm, 45mm, 50mm.
Opening Size:
Width: 0.1mm - 2.5mm.
Length: 4mm - 16mm.
Screen Width: 305mm, 500mm And 515mm.
Screen Length: 305mm, 610mm, 650mm, 915mm, 1200mm And 1220mm.
Connection Type:
Bolts Mosaic Screen.
Rose Nail Mosaic Screen.
Trim Strip Mosaic Screen.
Rail Support Mosaic Screen.
Color: Black , Red, Yellow And Any Other Colors You Want.
Features
Wear And Abrasion Resistance.
High Efficiency.
High Tensile Strength. Steel Frame Added To Strengthen The Tensile Strength.
Lightweight And Easy To Install.
Various Connection Types To Fit Different Machines.
Non-Blinding.
Low Noise.
Long Service Life.
Application
Can Provide a Ramp Which Helps To Maximize Screen Washing Capabilities.
Be Mainly Used For Dewatering And Dehydration For Various Materials.
Tailing Project.
Coal Project.
Gravel Project.
Sand Project.
