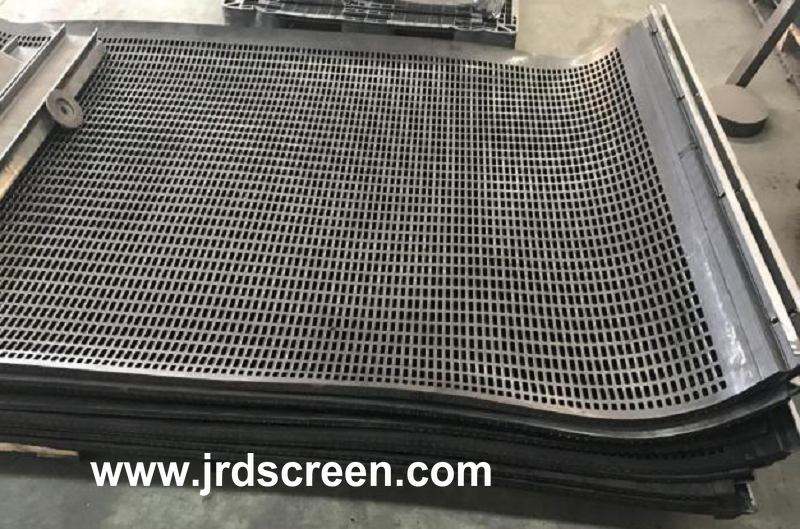

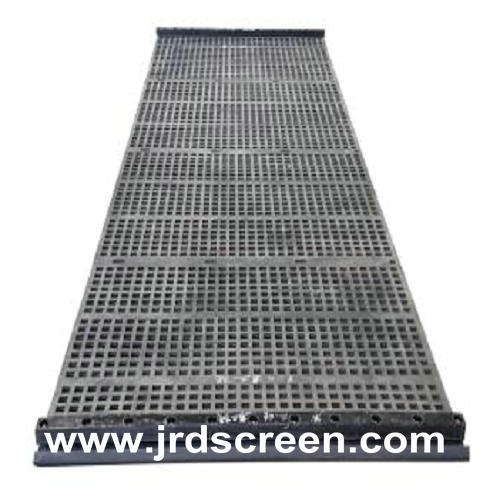

Rubber Hook Screen Is Made Of Wear Resistant Rubber Materials And Embedded With Steel Frame. This Kind Of Rubber Screen Has A Special Designed Fastening Hooks Which Can Clamp Screens Into The Separator. The Hooks Can Be Transverse Tensioning And Longitudinal Tensioning.
Hook Screen Is Light weight And Easy To Install In Screening Situations Where Material Specifications Are Frequently Changed.
Rubber Hook Sieve Screen Is Ideal For All Screening Applications Where Screening Efficiency And Noise Reduction Is Crucial. The Various Opening Sizes Ensure The High Separating And Screening Efficiency And The Smooth Surface And Rubber Materials Make The Screen Has Much Lower Noise Than The Woven Hook Screen Panels Or Perforated Hook Screen Panels.
Specifications
Material: Rubber Material And Steel Frame.
Thickness: 25mm - 60mm.
Hole Type: Square, Rectangular, Round And Other Types Are Available.
Hole Size: 2.5mm - 130mm.
Panel Width: Max. 1.5m.
Panel Length: Max. 3m.
Hook Type: Metal Or Rubber.
Hook Direction: Transverse Or Longitudinal.
Color: Black
Features
Embedded Steel Frame For High Tensile Strength.
Metallic Hooks For Easy Replacement.
Wear Resistance.
Age Resistance And Long Service Life.
High Efficiency.
Various Openings For Accurate Separating.
Light weight And Easy To Install And Replace.
Low Noise.
Applications
It Is Fitted To All Vibrating Screens.
It Can Separate And Screen Almost All Of Materials From Coarse Stones To Fine Materials.
It Is Ideal For Both Dry And Wet Materials.
