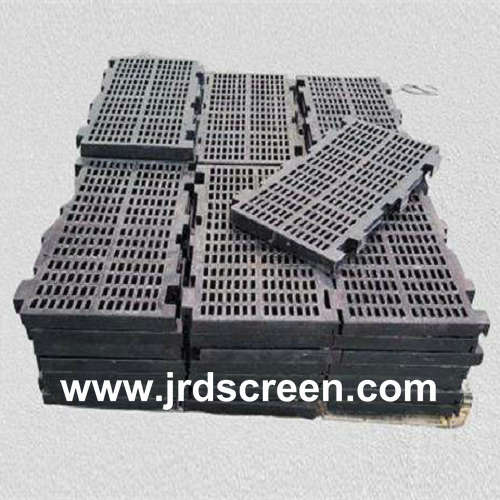

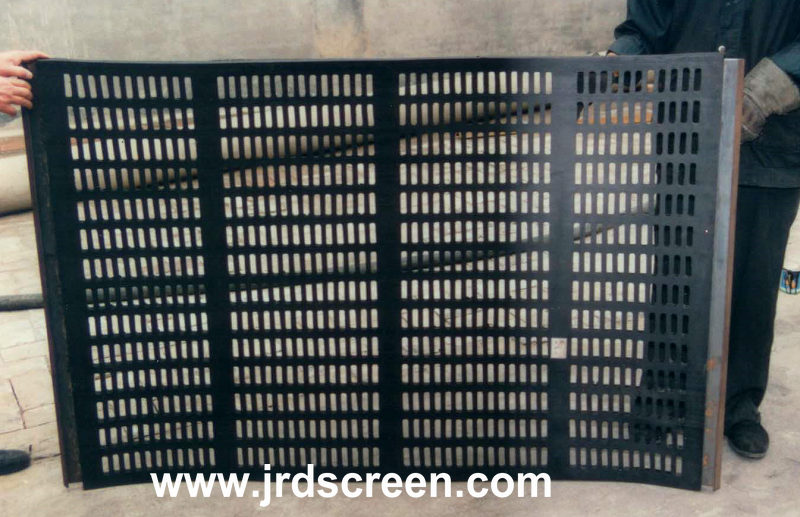

Rubber Edged Screen Refers To The Screen Frame With Unit Shape Wrapped By Rubber, And The Material Of Internal Screen Can Be Any Material. It Can Be Metal, Such As Stainless Steel, Carbon Steel, Manganese Steel; It Can Also Be Other Kinds Of Rubber Or Flexible Wear-Resistant Materials.
The Rubber Edge Is Mainly Used To Isolate The Inner Screen Panels From The Direct Contact With The Machine Installation Groove, So As To Avoid The Damage To The Machine Or Screen Plate Due To Strong Vibration.
1)Rubber Edge Screen Usually Adopts Triangle Belt Transmission Device, And The Structure Is Simple.
2)It Can Select The Number Of Vibrators Freely, But The Belt Slips Easily During Operation, Which May Cause The Screen Hole To Be Blocked.
3)It Is Also Driven Directly By a Coupling.
4)The Coupling Can Keep The Number Of Vibrators Stable, And The Service Life Is Very Long, But The Number Of Vibrators Is Difficult To Adjust.
Working Characteristics
1)The Block Eccentricity Is Used As The Exciting Force And The Exciting Force Is Strong.
2)High Strength Bolts Are Used In The Screen Cross Beam And Screen Box, With Simple Structure And Convenient Maintenance.
3)The Tire Couplings Are Flexibly Connected And Run Smoothly.
4)Adopting Small Amplitude, High Frequency And Large Inclination Structure, The Machine Has The Advantages Of High Screening Efficiency, Maximum Treatment, Long Service Life, Low Power Consumption And Low Noise.
According To The Structure And Working Principle Of The Rubber Edged Screen, There Are Basically The Following Categories:
The Working Face Of The Edged Screen Is Made Up Of a Rolling Shaft Which Is Arranged Horizontally.
♠The Working Part Of The Edged Screen Sieve Is Fixed, And The Material Is Screened By The Sliding Of Material Along The Working Face.
♠Edged Screen Is One Of The Most Widely Used Ore Dressing Plants. It Is Usually Used For Pre Screening Before Crushing.
♠It Is Simple In Structure And Convenient In Manufacture.
♠Without Wasting Power, The Ore Can Be Directly Discharged Onto The Screen Surface.
♠The Main Drawback Is Low Productivity And Low Screening Efficiency, Generally Only 50 - 60%.
The Plane Motion Sieve Body Is A Plane Swing Or Vibration.
According To Their Planar Motion Trajectories, They Are Divided Into Linear Motion, Circular Motion, Elliptical Motion And Complex Motion. Rubber Edged Screen And Vibrating Screens Belong To This Category.
