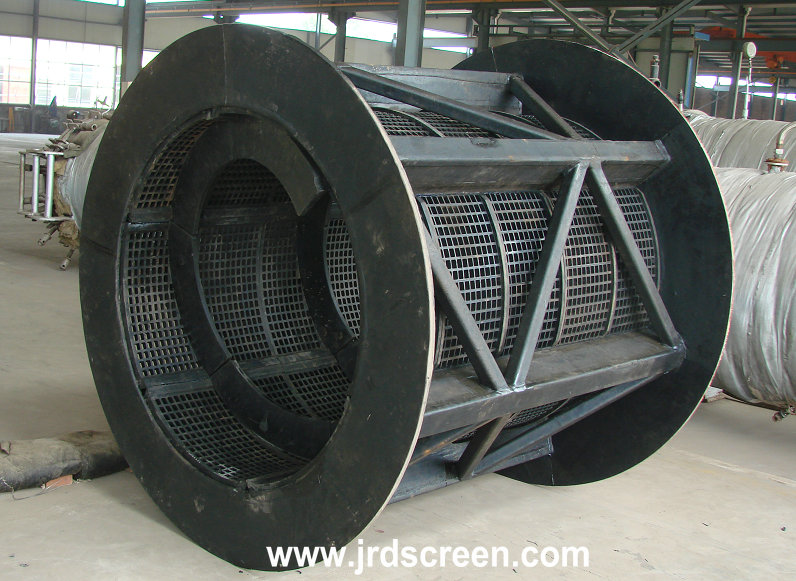

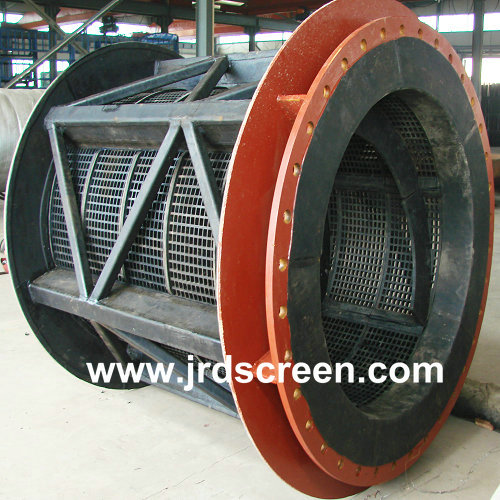

Rubber Trommel Screen Mats Is Made Of Natural Wear-Resistant Rubber As The Core Material And High-Temperature And High-Pressure Mold Pressing Vulcanization Method. It Is Generally Used In The Iron Ore Particle Separation System To Obtain Fine Iron Ore Particles, Which Is Fully Prepared For The Next Processing.
Wear Resistant Rubber Trommel Screen Is Mainly Used In Dry Environment, Belonging To Dry Separation System. In The Working Environment Where There Is No Aqueous Solution, Some Materials Have Very High Viscosity, And It Is Easy To Form Viscous Substances With High Viscosity When Encountering Water, So Dry Separation Must Be Carried Out. Rubber Will Not Form A Lot Of Heat Like Polyurethane, So Natural Wear-Resistant Rubber Plays An Irreplaceable Role In The Field Of Dry Powder Separation. In Addition, The Rubber Friction Residue Belongs To Particle State, Which Will Not Affect The Purification Of Fine Materials.
According To The Different Application Environment Of The Product, The Rubber Trommel Screen Mats Can Be Classified Into The Straight Trommel Screen Mats And The Curved Trommel Screen Mats.
Curved Screen Mats Is Mainly Used In Small-Diameter Rotary Screen Machine, Generally Less Than Two Meters. As The Inner Surface Of The Trommel Screen Is Bent, The Screen Mats Needs To Be Bent For Better Installation; At The Same Time, Make Sure That The Rubber Mats Is Closely Combined With The External Steel Framework, So That The External Steel Framework Can Bear The Impact Of The Material, Reduce The Impact Force Of The Rubber Screen Mats, So As To Extend The Service Life Of The Rubber Screen .
The Straight Plate Type Trommel Screen Mats Is Mainly Used In The Large-Diameter Trommel Screen Machine, Which Is Generally Larger Than 2.5m In Diameter. Because The Manufacturing Cost Of The Curved Type Screen Mats Is Relatively High And The Mold Cost Is Very Expensive, The Large-Diameter Trommel Screen Machine Adopts The Straight Plate Type Rubber Trommel Screen Mats, Which Is Spliced In Small Pieces. In This Case, The Overall Area Of The Screen Mats Is Not Too Large, And Multiple Splicing Greatly Reduces The Gap Between The Screen Mats And The External Steel Structure. Because The Rubber Is Soft, It Can Be Installed Without Gap In The Large-Diameter Trommel Screen Machine.
Our Company Has Been Producing Wear-Resistant Rubber For 30 Years. We Have a Lot Of Experience And Technical Strength In The Field Of Mine Wear-Resistant Products. Trommel Screen Machine Rubber Screen Mats Is One Of The Main Products Of Our Company. Overseas, Mainly In Australia, South Africa, Chile, Russia, All Products Are Used In Major Mines. In Addition, The Rubber Trommel Screen Used In The Largest Copper Mine In Mongolia Is Provided By Our Company. We Can Produce Rubber Embedded Trommel Screen Machine According To Customers' Needs, Or We Can Only Supply Rubber Screen Mats Inside.
Advantage
1. The Mesh Of The Sieve Mats Of The Rubber Trommel Is Wedge-Shaped, Narrow At The Top And Wide At The Bottom, So As To Reduce The Blockage Of The Holes Caused By Large Particles Of Materials.
2. Wear Resistant Rubber Can Provide Greater Friction Resistance And Improve The Comprehensive Service Life.
3. The Density Of Rubber Is Only 1.3, Which Is Relatively Light, Easy To Install And Does Not Need Too Much Installation Cost.
4. Wear Resistant Rubber Belongs To The Range Of Elastomer Materials, And Flexible Materials Reduce Working Noise.
5. There Are Various Apertures, Which Can Be Customized To Different Shapes, Sizes And Densities.
JinRuiDa Wear-Resistant Material Is Worthy Of The Trust Of Our Customers. In The Wear-Resistant Rubber Trommel Screen Mats, If You Encounter Any Problems, You Can Consult Us, The Professional Technical Team, Strong Strength Support, Will Certainly Solve The Problems For Your Trommel Screen Field.
