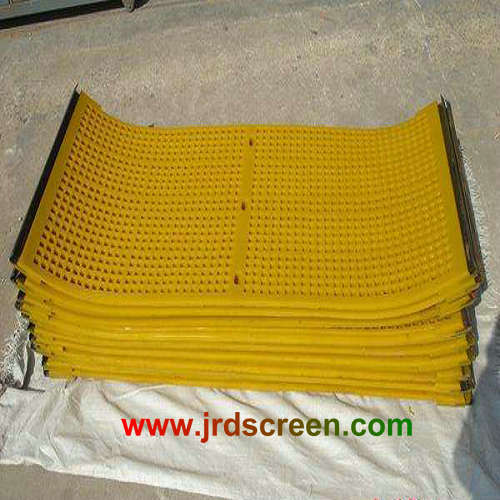

Polyurethane Tensioned Screen Mesh ( PU , Urethane ) Sieve Mesh

Polyurethane Tensioned Screen Mesh Is A Kind Of Screening Mesh That Can Provide Horizontal Or Vertical Tension. Because The Installation Of Machine Mesh Is Irregular In The Use Process, Or The Elasticity Of Polyurethane Itself Is Not Enough To Meet The Use Conditions, It Is Necessary To Change The Overall Structure Of The Screen Mesh To Meet The Elastic And Vertical Tension Of The Overall Panel, So a Special Screen Plate Is Needed. The Tightening Sieve Plate Just Meets The Use Requirements.

Polyurethane Cross Tension Screen Mesh Is Generally Square Or Rectangular, With Hooks On Both Sides, Belonging To Hook Mounted Screen Mesh. It Is Used To Screen Materials Falling From Height And Provide Supporting Force. Generally, The Mesh Is Relatively Large, And There Are Also Some Small Holes Sieve Mesh. For The First Work Mesh.

According To The Different Processing Structures, It Can Be Divided Into Two Types: Steel Backed Polyurethane Tension Screen Mesh And Embedded Steel Wire Rope Polyurethane Tension Screen Mesh:

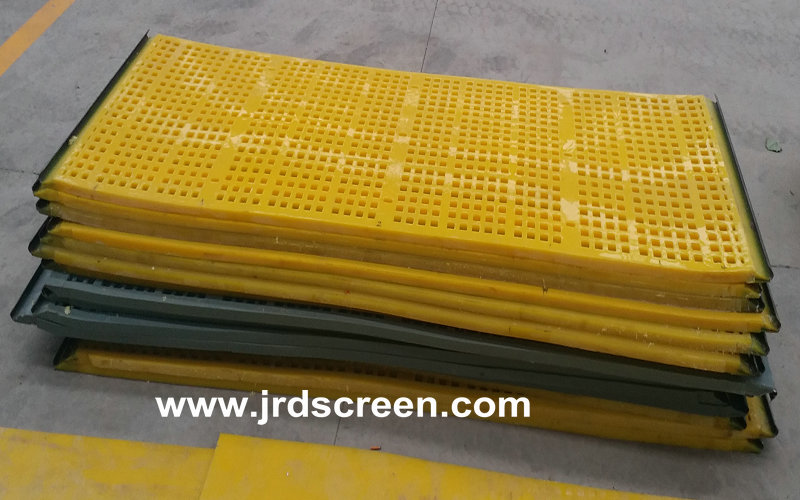

Steel Backed Polyurethane Tension Screen Mesh Refers To: One Side Of The Whole Sieve Mesh Is Steel Sieve Mesh, And The Other Side Is Attached With Polyurethane Sieve Mesh. Because The Main Working Panel Is Polyurethane Surface, The Other Side Does Not Participate In The Screening Operation, So The Other Side Only Needs Steel Mesh Surface To Provide Support. This Kind Of Sieve Mesh Can Cope With The Impact Of Large Materials.

Polyurethane Cross Tension Screen Mesh With Embedded Steel Wire Rope Refers To That Different Numbers Of Steel Ropes Are Embedded In The Polyurethane Screen Mesh , And Both Sides Are Attached By Polyurethane. The Advantage Of This Kind Of Screening Mesh Is That It Is Responsible For Sieving Materials On One Side, Responding To The Impact Force Of Materials, On The Other Side, It Can Slow Down The Damage To The Machine During High-Strength Operation, And Provide Damping Effect.

There Are Still Other Types Of Screening Mesh Designated By Customers According To Different Use Environments. Our Company Can Tailor Them According To Customers' Needs. Because This Kind Of Urethane Screen Mesh Is Often Large-Area Integration. Therefore, Only The Whole Screen Can Be Replaced. However, Because Of The Hook Type Link, It Is Easy To Replace, And There Is No Need To Load And Unload Screws. In The Past Experience, This Kind Of Sieve Mesh Can Be Installed On Almost Any Beneficiation Machine.
Our Company Has Many Advantages In PU Screen Mesh :
1, High Screening Rate, Not Easy To Block Mesh.
2, It Has Excellent Wear Resistance, 3-5 Times Of The Service Life Of General Alloy Screen, And Is Cheap.
3, It Is Suitable For All Kinds Of Bad Working Environment.
4, Standard Sizes (305mm x 305 mm And 305 x 610 mm) And Custom Sizes Are Available To Meet Your Application Needs.
5, Aperture Size And Mesh Thickness Can Be Freely Selected
6, Quick And Easy Installation And Removal
7, Provide All Kinds Of Fastening Parts For Board Surface.
