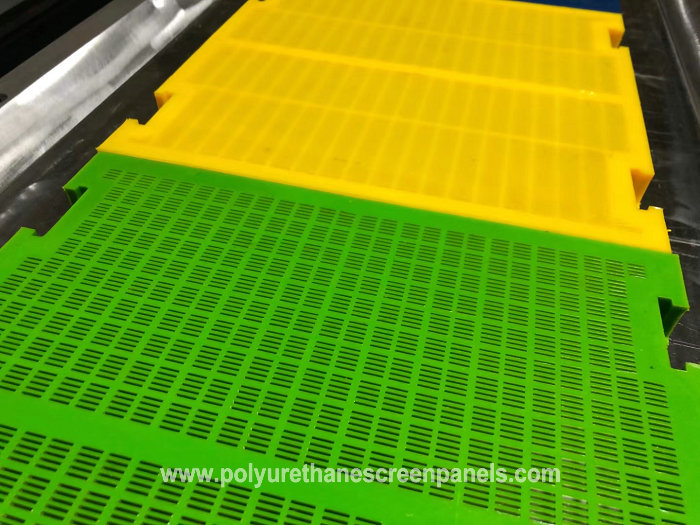

Polyurethane Dewatering Screen Mats Is The Main Working Mats Of Dewatering Screen Machine, And The Whole Mat Is Evenly Distributed With Small Long Holes.
It Is Used To Separate Solid Particles And Aqueous Solutions To Obtain Relatively Dry Solid Particles Or Powders. Compared With Other Materials, Polyurethane Materials Can Make The Holes Very Small, Generally Less Than 1 mm.
According To Different Uses, It Can Be Simply Divided Into Tailing Dewatering Sieve Mats, Chemical Dewatering Sieve Mats And Coal Mine Dewatering Sieve Mats.
The Overall Structure Of The Polyurethane Dewatering Screen Is Relatively Simple, Which Is Generally Composed Of Polyurethane And Steel Frame. The Steel Frame Is Inlaid Inside And Polyurethane Is Attached Outside. In Order To Withstand High-Strength Working Pressure, Do Not Affect The Overall Screening Performance.
Working Principle
After The Whole Material Enters The Water Separator, It Passes Through At Least Three Layers Of Filtration And Screening. In The Last Layer, The Water Solution And Solid Particles Are Separated By The Dehydration Screen Mats. Because The Sieve Mats Holes Is Extremely Narrow, It Can Only Let The Water Solution And The Very Small Powder Pass Through, And The Small Particles Larger Than The Holes Size Will Flow To The Finished Product Warehouse. Therefore, The Polyurethane Dehydration Sieve Mats Is Generally Located On The Last Sieve Mats Of The Whole Machine, That Is To Say, It Is Installed At The Bottom Of The Machine.
Purpose:
Polyurethane Dewatering Screen Is Widely Used In Concentrator, Tailings Dewatering, Concentrate Dewatering, Sandstone Dewatering, Mine Dewatering, Slime Dewatering, Gravel Dewatering, Sand Vibrating Dewatering Screen. Etc.
Characteristics:
1. High Wear Resistance, Water Resistance, Corrosion Resistance, Long Service Life.
2. The Sieve Holes Above The Urethane Screen Mats Is Small, The Sieve Below Is Large, The Sieve Is Fine, Not Easy To Block, And The Sieve Efficiency Is High.
3. With Assembly Structure, The Single Sieve Mats Has Small Area, Light Weight And Convenient Installation. If The PU Screen Mats Is Damaged, Only The Damaged Parts Need To Be Replaced, Without Large Area Replacement, Saving Cost.
4. There Are Various Installation Methods: Nail Type, Bolt Type, Rail Type, Pressure Bar Type. Customers Can Customize Different Dehydration Screen Mats According To Their Needs.
Model Of Screen Mats:
The Size Of Polyurethane Screen Mats Is Generally Determined By The Model Of Dehydration Screen.
General Standard Size: 305X305, 305X610, 610X610, 500X600.
Holes Width: 0.1, 0.2, 0.3, 0.5, 0.75, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0mm, Etc.
