Polyurethane Modular Screen Media ( PU , Urethane ) Sieve Media

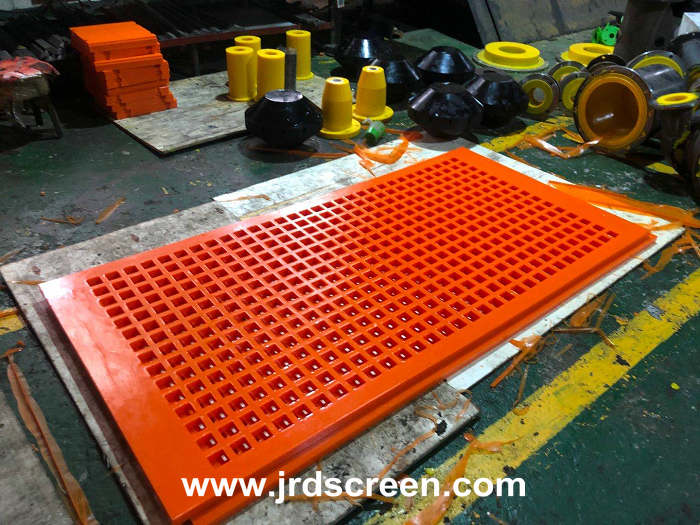

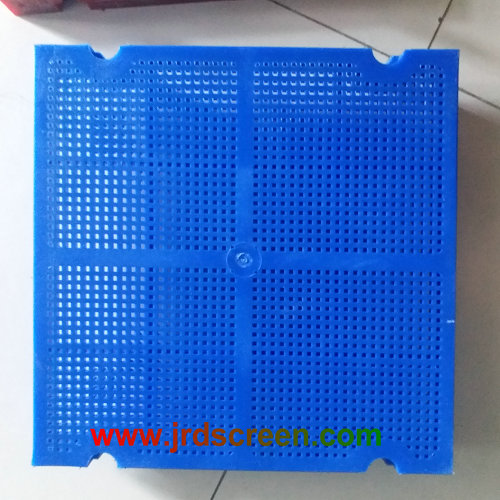

Polyurethane Modular Screen Media Is A Kind Of Sieve Media With Square Mesh Holes. In The Process Of Production, The Molds Can Be Spliced Freely And Present Modular Shape, So The Thickened Screen Media With Square Holes Is Called Modular Screen Media. It Is Mainly Used In The Mineral Screening Process, Generally Used For The Separation Of Large Particles, Located In The First Panel Of The Screening Machine.
It Is Made Of High Wear-Resistant Polyurethane As Raw Material And Mold Casting Method. It Has Irregular Shape And Size. a Series Of Regular Holes Are Evenly Arranged On It To Sieve Materials. In Order To Improve Its Load-Carrying Capacity, Some Products Need Embedded Steel Skeleton.
According To The Overall Structure Of The Modular Screen Media , It Can Be Divided Into Non Skeleton Screen Media And Skeleton Screen Media .
The Frameless Modular Screen Media Is Mainly Used In The Working Environment Where The Impact Force Is Not Large, But The Wear Resistance Is Required To Be High. This Kind Of Screen Media Installation Machine Often Has Its Own Steel Framework, Only Need To Put The Screen Media On The Existing Framework Of The Machine To Operate Normally.
The Modular Screen Media With Framework Is Mainly Used For The Working Environment With Great Impact Force, Which Requires Steel Framework To Provide Greater Support Capacity. Considering The Wear Resistance, The Thickness Of Polyurethane Can Be Selectively Increased.
The Size Of The Modular Screen Media Can Be Processed According To The Customer's Drawings. After Several Years Of Accumulation, Our Company Has Owned a Large Number Of Models Of Molds, And Provides Services For Different Buyers, So As To Reduce The Cost Of Opening The Grinding Tools For Customers. The Urethane Screen Media Can Be Cut According To The Actual Application, So As To Facilitate The Installation And Commissioning Of Different Machines. The Urethane Media Of Polyurethane Material Is Mainly Used For Wet Working Condition.
Our Company Has Many Advantages In PU Screen Media :

1. Long Life And Strong Bearing Capacity.

Because Polyurethane Flexible Steel Media Is Used As Framework Material, And Polyurethane Itself Has High Elastic Modulus, High Strength Of Shock Absorption And High Wear Resistance, It Has High Tensile Strength, And Its Carrying Capacity Is More Than 2.5 Times That Of Steel Media. Its Service Life Is 8-10 Times Longer Than That Of Ordinary Metal Media, 3 Times As Much As That Of Stainless Steel Wire Mesh And 3.9 Times As Much As That Of Natural Rubber. It Is The World's Most Wear-Resistant Surface Material For Wire Media. Polyurethane Modular Screen Material Is a Kind Of Macromolecule Organic Elastomer, Which Has Excellent Wear Resistance, Flexural Resistance And Load-Bearing Capacity. The Raw Materials Produced By Polyurethane Modular Screen Media Are Specially Treated To Ensure That The Long-Term Alternating Load Never Delaminates.

2. High Sieve Efficiency.

The Sieve Surface Has Self-Cleaning Performance, No Clogging And High Sieve Efficiency. Due To Its Strong Water Permeability And Large Sieve Angle (140 Degrees), Polyurethane Can Effectively Prevent The Adhesion Of Wet Fine Particles And Is Suitable For Classification Of Wet Fine Materials. The Polyurethane Media In Our Factory Adopts Imported Raw Materials, Elastomer And Good Relaxation Performance, Which Can Effectively Prevent Blockage Under Dynamic Conditions.

3. Wide Range Of Application,

Strong Professional Applicability, More Suitable For Any Type Of Modular Screen Machine And Batch Production Machine. Polyurethane Modular Screen Is Specially Used For Metal Mineral Processing Of Hydro power Stations And Building Materials. The Sieve Efficiency Of All Kinds Of Materials In The Range Of 0.1mm-170mm Is Not Affected By Dry And Wet Sieve. The Dehydration Delamination Is In The Range Of 0.5m-3mm, Which Fully Reflects The Superiority Of Polyurethane Modular Sieve Surface. The Product Is Water-Resistant, Corrosion-Resistant, Anti-Aging, Easy To Replace And Maintain. Polyurethane Has Low Density (1.32kg/m 3), Lighter Surface Than Modular Screen, And Can Reduce Unit Consumption. It Can Meet The Requirements Of Developing Large-Scale Sieve Machine.

4. High-Precision Sieve.

The Polyurethane Modular Media Production Process Adopts Casting Process, Which Has Accurate Pore Size And High Sieve Quality. The Size Of Sieve Blanking Can Well Meet The User's Requirements. Easy To Install And Replace, This Product Is Suitable For Any Type Of Sieve, Light Weight, Easy To Install On Site Or Replace Maintenance, Greatly Reducing The Workload.

5. Low Noise,

In Line With The National Environmental Noise Standards. According To The Actual Measurement, The Same Sieve Machine Using Polyurethane Screen Media Can Reduce Noise By 5-20 Decibels, Greatly Reduce Dust Flying, So That The Production Site Has a Quiet And Clean Working Environment.

6. Significant Economic Benefits.

Although The Price Of Polyurethane Modular Screen Surface Is Higher Than That Of Metal Sieve, If The Factors Such As Sieve Efficiency, Maintenance Cost And Service Life Are Taken Into Account, The Overall Efficiency Of Polyurethane Modular Screen Surface Is Much Better Than That Of Ordinary Metal Sieve. According To The Survey, 45 Tons Of Steel Can Be Saved Per Ton Of Polyurethane Media. Save Maintenance Costs By 4 Million Yuan. Therefore, Polyurethane Media Surface Instead Of Steel Sieve Surface Will Be The Inevitable Choice For The Majority Of Enterprises In The Future.
