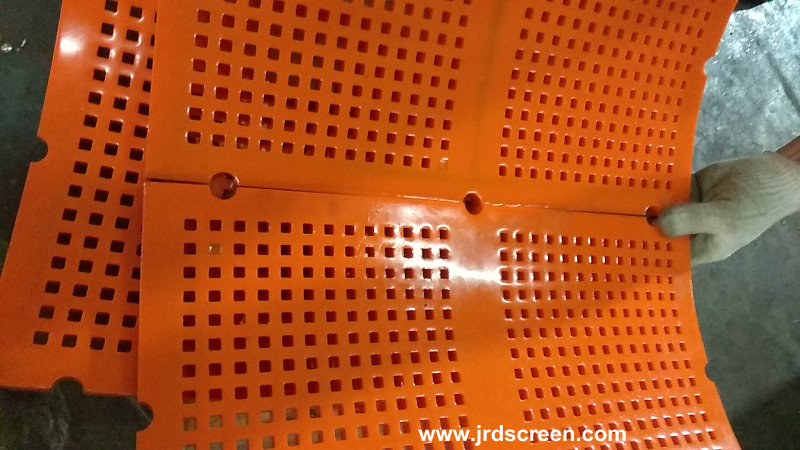

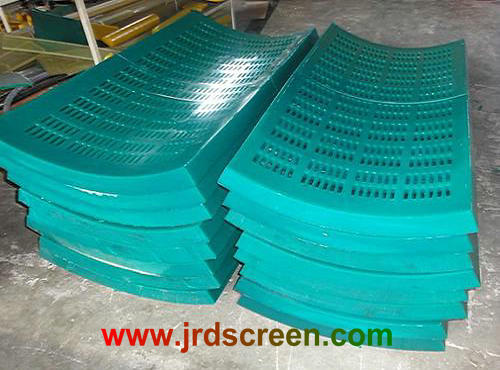

Polyurethane Curved Screen ( PU , Urethane ) Sieve Screening

Polyurethane Curved Screen Can Be Used As A Successful Alternative To Metallic Sieve Bends In Very Fine Wet And Dry Screening Operations, Especially Where Corrosion Or Noise Is An Issue.
Polyurethane Curved Screen Are Light Weight, Economical And Ready For Installation Without Modification. As A Material, Polyurethane Offers Maximum Flexibility In Screen Opening Configurations, As Well As The Integration Of Performance Enhancing Features Like ”L” Type Weirs, Restricted Flow Bars, Rider Bars And Deflectors.
Our Company Offers A Complete Range Of Custom-Made PU Curved Screen To Suit Your Screening Needs, Including The Following Sieve Bend Types:
One-Piece Curved Screen
As A Replacement For Wedge Wire, The Polyurethane One-Piece Curved Screen Bend Offers a Lighter Option, Longer Serviceability And Improved Screening Efficiency.
Modular Curved Screen
The Polyurethane Modular Curved Screen Is Similar To The One-Piece Curve, Except That The Bend Is Split Into Modules, Allowing The Replacement Of High Wear Panels Only. The Flexibility Of The Design Improves Wear Resistance And Reduces Maintenance And Downtime.
Static Cradle Screen
The Static Cradle Design Maximises The Flexibility Of The Polyurethane Modular Panel Design To Increase The Efficient Use Of Individual Panels.
Polyurethane Curved Screen Use The Bolts And Nuts To Fixation. When We Need To Replace The Worn Screen Panels, It Is A Huge Waste Of Time. PU Curved Screen Has Change This Situation.
It Is A Type Of Polyurethane Screen Specially Designed For Trommels. It Applies Interlocking Fixation Type To Offer A Fast And Simple Installation. Additional, It Is Easy And Convenient To Replace Worn Or Existing Screens.
Specifications
Material: Polyurethane And Embedded Steel Frame.
Thickness: 20mm - 50mm.
Hole Type: Square, Slot, Oval, Rectangular And Other Hole Are Available.
Hole Size: 2.5mm - 130mm.
Color: Red, Yellow, Blue, Orange, Green And Any Other Colors You Want.
Features
Inter Locking Fixation For Easy Installation And Fixation.
No Effort To Replace The Worn Screen Panels.
Polyurethane Materials For High Wear Resistance.
Smooth Surface For High Screening Efficiency.
Large Range Of Existing Aperture Sizes Available.
Different Screen Panel Sizes To Fit Various Trommels.
Save Time And Reduce Maintenance.
No Special Fixing Skill Or Method Required.
Application
Be Specially Designed For Screening And Separating Trommel.
Can Be Used For Screening Various Materials, Such As Sand, Stone, Gravel.
Can Also Be Used For Materials Dewatering.
